1.6KW High Speed Spindle Servo Motor CNC Wood Router Machine
1. CNC
The system adopts Minte multifunctional numerical control system,
which is compatible with engraving spindle and vibrating knife for
high-speed cutting with visual positioning.
Fast visual positioning, accurate grasping points, automatic
compensation
2. Vibrating cutter head
The vibrating knife adopts a high-speed servo motor to cut up and
down. It can be equipped with a variety of knives. It can cut
leather, PU, PVC, Oxford cloth, corrugated paper, KT board and
other materials.
3. Cutting spindle
Spindle motor: 1.6KW manual tool change 60000RPM water-cooled
high-speed spindle
Spindle speed: 10000—60000RPM
Chuck specification: Ø3-Ø6 collet
Cooling method: air cooling
4. Work surface
The work surface adopts cotton felt soft surface to help ensure the
flatness of the processing surface and protect the vibrating tool
for long-lasting durability. At the same time, it takes into
account the cutting of materials with higher hardness; the
high-efficiency grid-shaped vacuum surface is adopted, and it is
equipped with a vacuum pump or any of the worktables. The parts can
quickly adsorb the workpiece
The vacuum pipeline adopts double filtration to avoid failure due
to the suction of chips by the vacuum pump

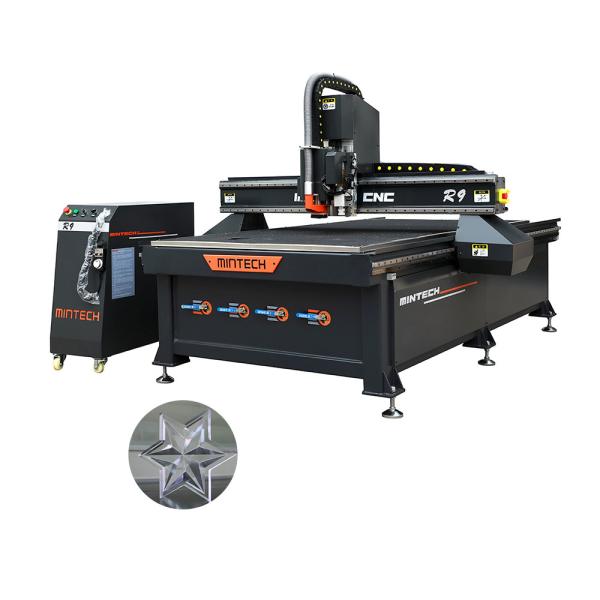

Model: R9
Working voltage: AC380V / 50HZ / 3PH
Machinable size: 1300mm * 2500mm * 60mm
Distance from beam to work surface: 150mm
Z axis travel: 160mm
Maximum processing speed: 30m/min (tool coordination is required
for maximum cutting)
Maximum moving speed: 60m/min
Repeated positioning accuracy: + /-0.05mm
Drive mode: X, Y axis adopts helical gear rack drive;
Z axis adopts high precision ball screw drive.
