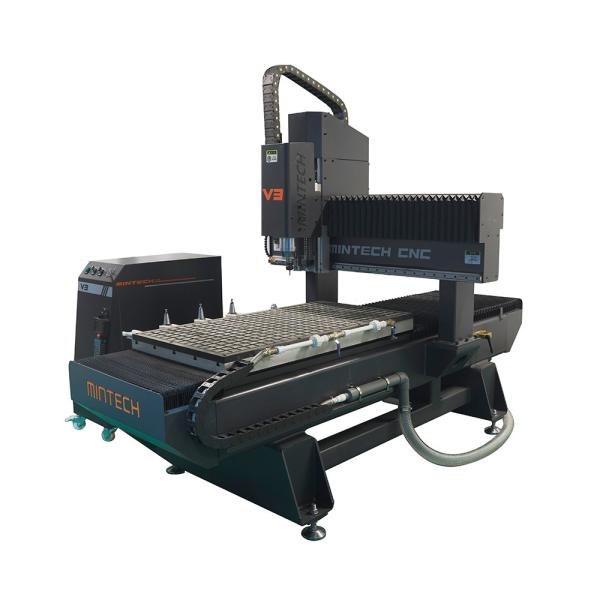

1200*600mm 5.5KW Servo Motor CNC Router Cutting Machine
Mintech V3 CNC router is a combination of quality and precision ,
It offers robust construction and high standard specification and
range of productivity options make the it suitable for volume
production as well as small batch manufacture. With the three
axises are all driven by high precision ballscrews and servo motor
, The V Series is a perfect choice for premium manufacturers
looking for high accuracy, reliability and high-quality machining
01 Control System
XINGDUOWEI Independent electric control box and operating the
handwheel;
A clamping to complete milling, drilling, chamfering and other
functions of precision machining;
02 Cutting Spindle
Spindle motor : 5.5KW water cooling spindle
Spindle speed: 4000-24000RPM
Chuck specification: ER25
03 Tool Changer
Manual tool change easy to use;
Fast tool change speed,small tool space occupied;
04 Servo Motor
Delta servo motor drive, high processing accuracy
05 Drive
The guide rail and screw rod are all used with Taiwan brands: TPI,
More accurate positioning
06 Working Table
Working table with aluminum T-groove table, with baffle water tank
around the table, equipped with water supply and drainage system
and water filtration system.
V series equipment Parameters.
1. Machine model: Mintech V3 CNC router
2. Working area : 600mm *900mm ;
3. The Z axis beam to the distance table: 200mm;
4. Z axis travel: 280mm;
5. Repeat positioning: +/-0.05mm;
6. Cutting speed: 25000mm/min;
7. Idle moving speed: 2000mm/min;
8. Drive system: X, Y, Z adopts brushless servo drive, high
precision ball screw rod;
9. The clamping way: working table with aluminum T-groove table,
with baffle water tank around the table, equipped with water supply
and drainage system and water filtration system.
