Servo Motor Woodworking Engraving Machine For Wood

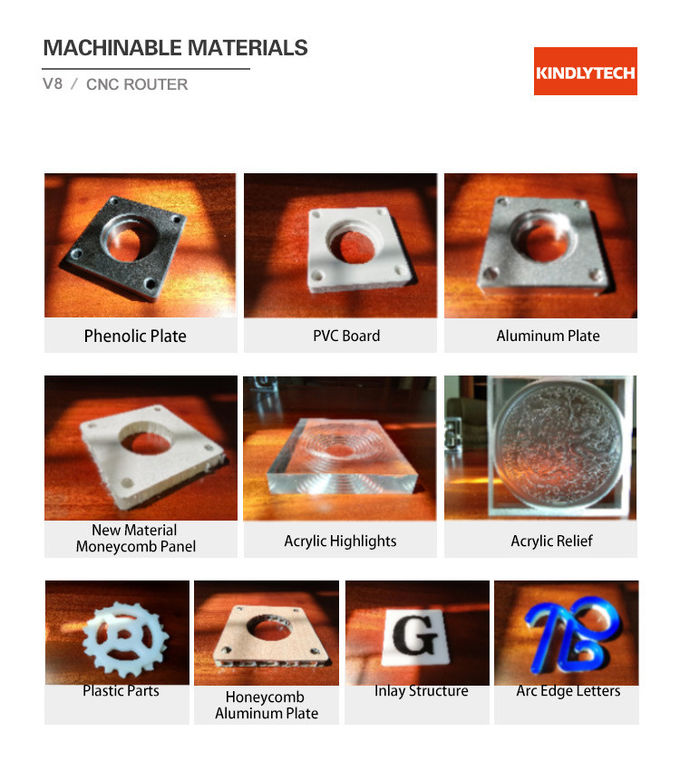

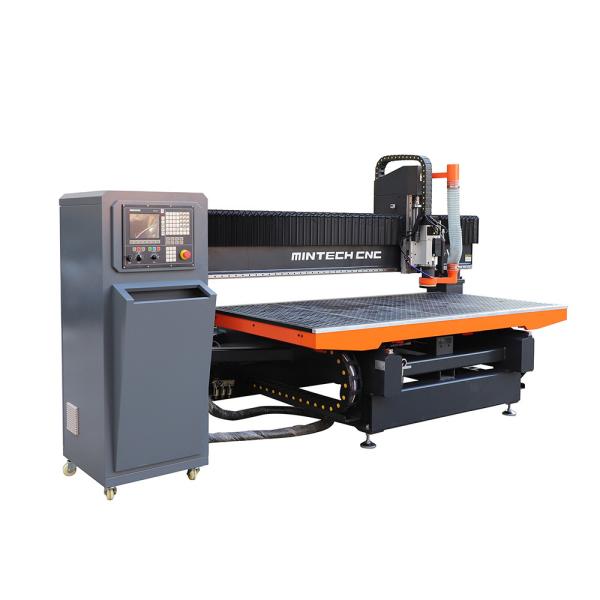

Mintech V8 CNC Router is the table moving type structure of VR series CNC router machine, Gantry is fixed, the optimized gantry frame beam and the mesa with precision, formed the framework of good rigidity and reliability of the whole structure, calculation of strength and rigidity to ensure optimal design of finite element. VR series gantry machining center, according to the cutting properties of acrylic, aluminum, copper, sheet metD light guide plate, LED luminous characters, acrylic products, insulation materials, aluminum profile, copper, such as sheet metal manufacturing industry.

1. This machine is driven by a three-axis screw drive and a servo motor, so the machining accuracy is high and the operation is stable.

2. The biggest feature of this machine is the movable table top structure, which is convenient for loading and unloading operations, and can be well coordinated with the manipulator.

3. The design of the machine tool is solid and the structure is stable and the appearance is beautiful.

4. The control system is diversified. It can be equipped with Weihong and Siemens systems to meet the needs of different customers.

Model:V8-ATC
Working Voltage: AC380V / 50HZ / 3PH
Machinable Size: 1270mm * 2540mm * 100mm
Beam to table height: 200mm
Z-axis Travel: 450mm
Max processing speed: 20m/min(Tool matching is required for maximum cutting)
Max Idle moving speed: 30m/min
Repeatability: + / - 0.05mm
Drive mode: X,Y,Z-axis high precision ball screw drive.

Guarantee & After-sale service:
1. One year warranty under normal use and we supply lifelong maintenance.
2. 24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of machine .

OEM Service Available:
1. Usually, we will manufacturer the machine as our regular design.
2. working size could be custmer-oriented designing.
3. Special configuration and machine color could be customer-oriented designing.

FAQ

​

FAQ:

Q: I knew nothing about this machine, what kindof machine i should choose?
A: Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.

Q: What technical services can you provide?
A: We will send video and English manual with the machine. And 24-hour professional technicians online training and problem
solving. It provide detailed installation courses.

Q: If some problems happen to this machineduring warranty period, what should I do?
A: We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long
after-sales service. So any doubts, just let usknow, we will give you solutions.

Dongguan Kindlytech Technology Co., Ltd. is located in Hengbang Science and Technology Park, Niushan Industrial Zone, Dongguan City. The company covers an area of 5,000 square meters and is a one-stop integrated supplier of acrylic processing equipment.The company currently has a first-class R&D team in the industry, an advanced manufacturing system, and a high-quality and efficient after-sales support team. It steadily occupies the highest point in the industry. The company's brand has long been familiar to high-end customer groups in the field of acrylic product processing, and its products are sold at home and abroad.

 ​
