Advertising Equipment Muti 3 Axis CNC Router Cutting Machine
quick detail

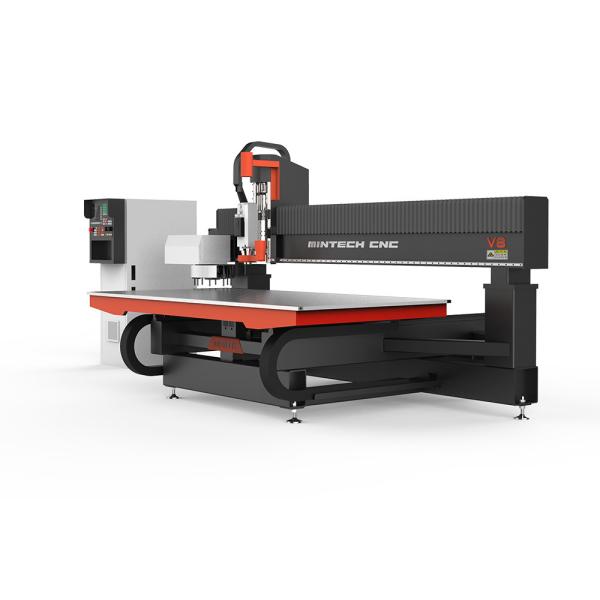

Mintech V8 CNC Router is the table moving type structure of VR series CNC router
machine, Gantry is fixed, the optimized gantry frame beam and the
mesa with precision, formed the framework of good rigidity and
reliability of the whole structure, calculation of strength and
rigidity to ensure optimal design of finite element. VR series
gantry machining center, according to the cutting properties of
acrylic, aluminum, copper, sheet metD light guide plate, LED
luminous characters, acrylic products, insulation materials,
aluminum profile, copper, such as sheet metal manufacturing
industry.
V series standard features:
1.WEIHONG user friendly operating system.
2.Imported high precision ball screw, sliding coefficient of
transmission is low, the friction force is small, stable running
fast.
3.Automatic tool calibration system.
4.USB and network file transfer function
5.Table moving
6.Power requirements: 3PH380V/50HZ;al and other materials, design
and technology demand to match themachine structure perfect and
drive mode, so that the precision positioning in the advertisement,
exhibition and so on.
No. | Content | V8 | Remark |
1 | Wire Rod | Ball screw | Imported |
|
2 | Drive Motor | The X axis drive motor | 0.85KW | Yaskawa Japan or Germany Siemens |
The Y axis drive motor | 1.3KW |
The Z axis drive motor | 0.85KW |
3 | CNC
System | Independent electrical control box and a handwheel | WEIHONG or SIEMENS | Selection type |
4 | Working Area | Working area (mm) | 1220*2440 |
|
Working area | Grid vacuum adsorption |
|
5 | Line Slot | Imported high quality wire groove | KSS | Taiwan |
6 | Cable | Flexible cable | IGUS | Germany |
V series equipment Parameters.
1. Machine model:Mintech V8 CNC router
2. Working area : 1220*2440mm
3. The Z axis beam to the distance table:185mm
4. Z axis travel:300mm
5. Repeat positioning:+/-0.03mm
6. Cutting speed:25000mm/min
7. Idle moving speed:30000mm/min
8. Drive system:X, Y, Z adopts brushless servo drive, high
precision ball screw rod
9. The clamping way:Vacuum adsorption partition table
Guarantee & After-sale service:
1. One year warranty under normal use and we supply lifelong
maintenance.
2. 24 hours technical support by Phone, Email, Skype, Msn, or
romote.
3. Free training to make sure you master the operation of machine .
OEM Service Available:
1. Usually, we will manufacturer the machine as our regular design.
2. working size could be custmer-oriented designing.
3. Special configuration and machine color could be
customer-oriented designing.
FAQ
Q:I knew nothing about this machine, what kindof machine i should
choose?
A:Just tell us what you want to do byusing CNC machine, then let us
give you perfectsolutions and suggestions.
Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour
professional technicians online training and problem solving. It provide detailed installation courses.
Q:If some problems happen to this machineduring warranty period,
what should I do?
A:We will supply free parts during machine warranty periodif machine
have some problems. While we also supplyfree life long after-sales
service. So any doubts, just let usknow, we will give you
solutions.
