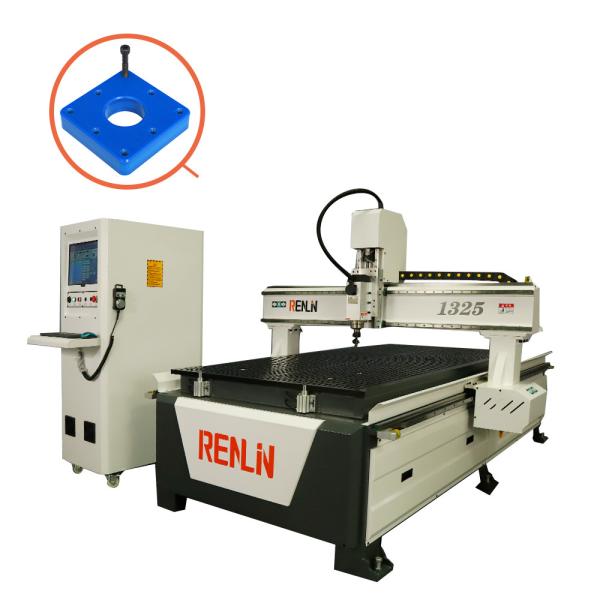

Woodworking 3 Axis Cnc Router Machine 6kw 40m/Min

Application industries:

Product Paramenters

Main configuration

High-power high-speed spindle.

6KW power, 18000r/min high-speed spindle motor, fast realization of drilling, cutting, milling, slotting,

engraving and other processes.

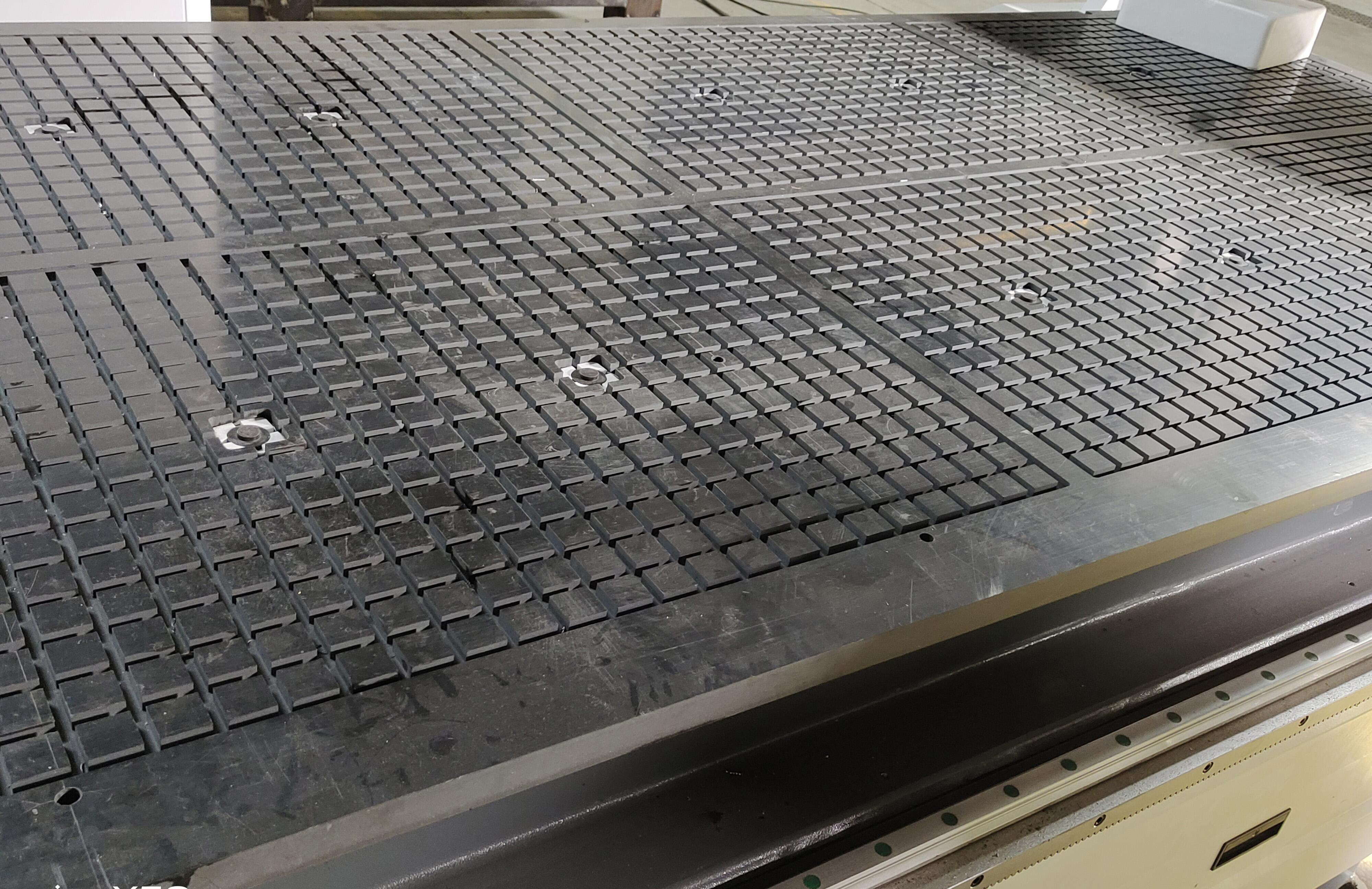

Super large vacuum adsorption platform.

The installation surface of the machine tool platform is CNC machining to ensure the horizontal precision of the machine tool platform.

The vacuum adsorption platform is made of industrial polyphenolamine grease board, which has the characteristics of high flatness

without deformation at high temperature

Independent zone control.

The machine is equipped with positioning cylinder, control valve, can control an independent area, suitable

for various specifications of the plate

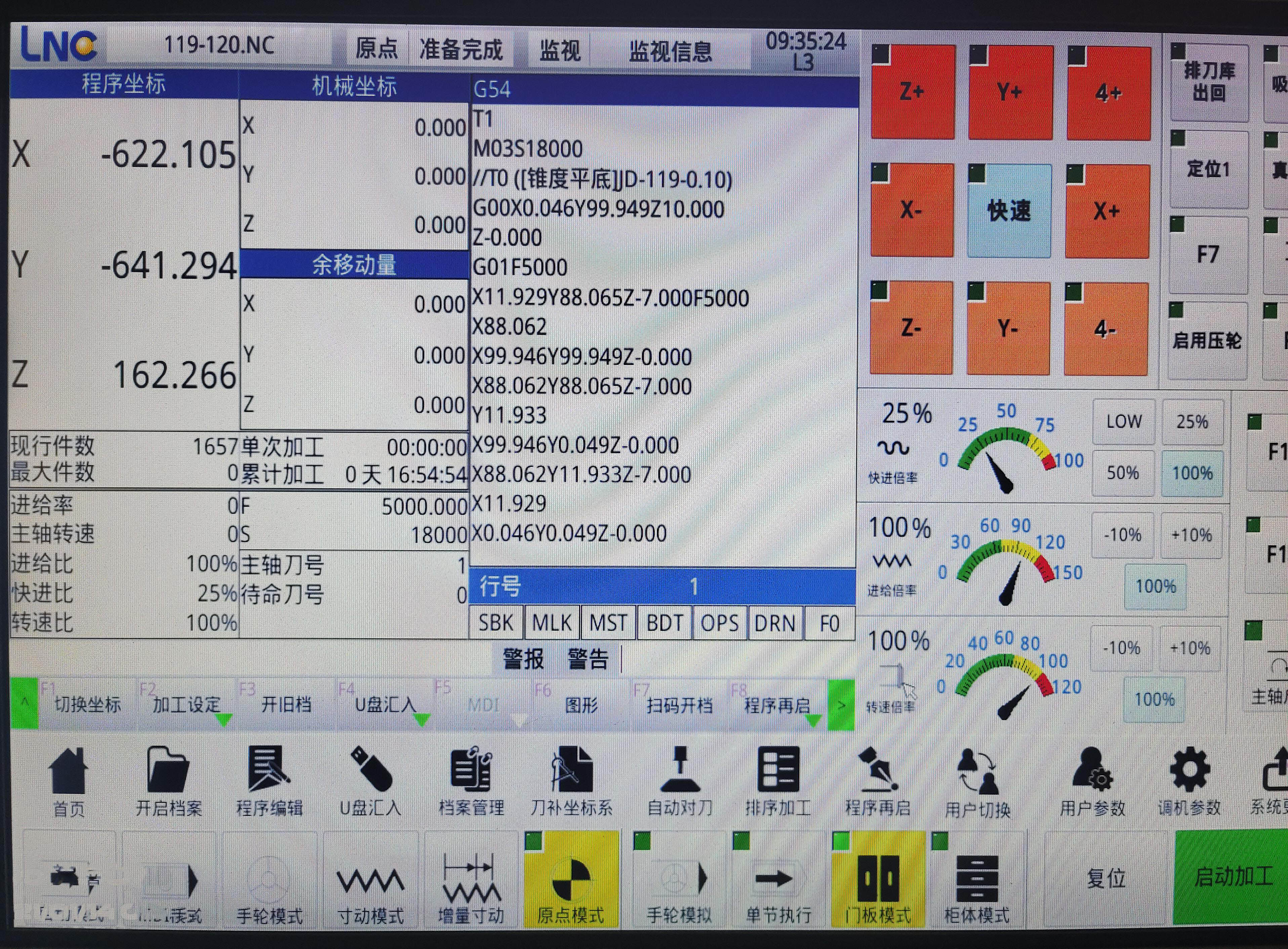

Taiwan LNC systerm.

Taiwan LNC system, quick and convenient operation, simple training can start production.

Independent industrial grade electric cabinet.

Professional electrician wiring and power distribution, the structure is reasonable, safer, more durable, and more convenient to operate.

More details.

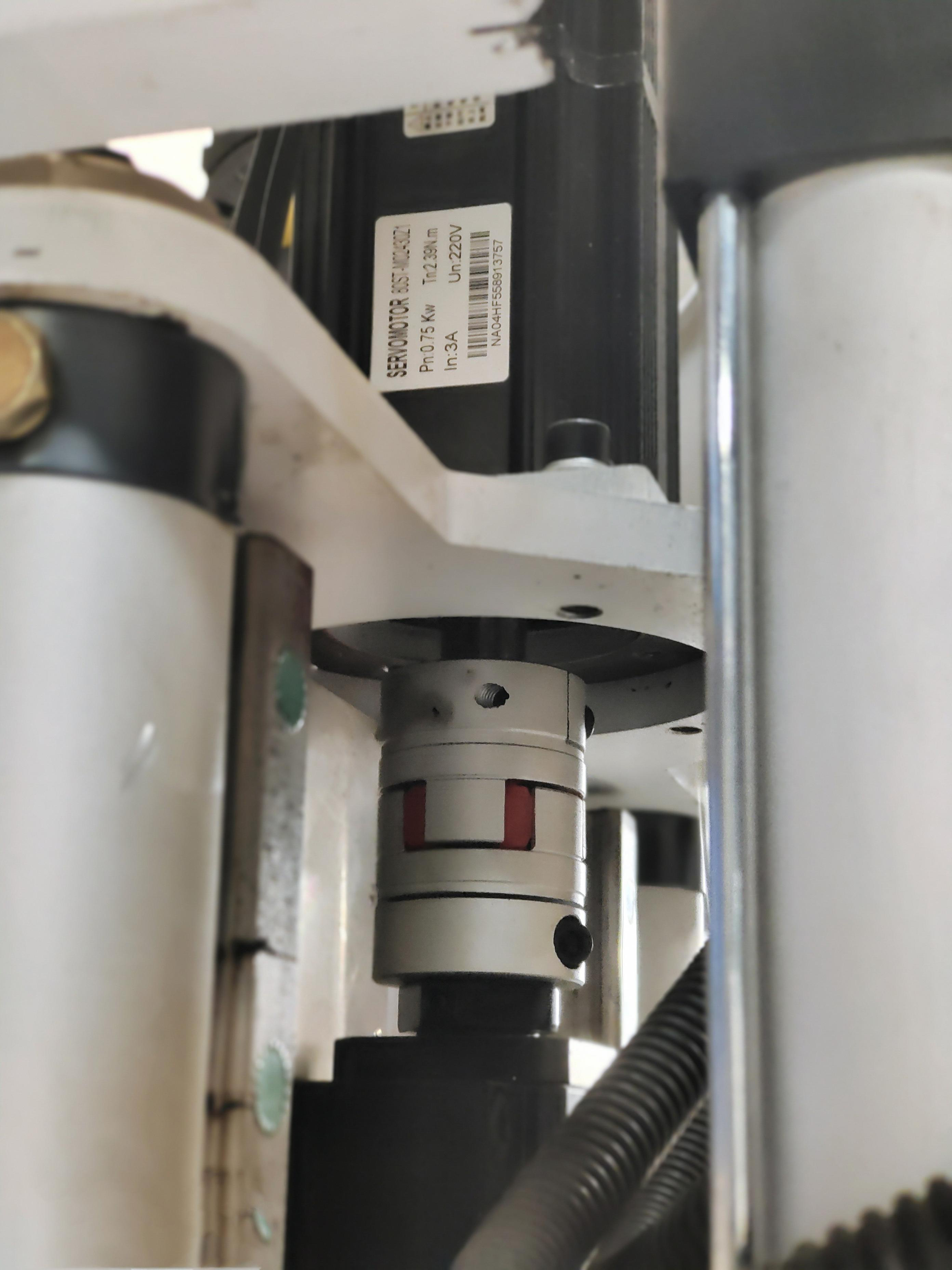

Z axis drive motor with lock brake function.

Original imported rack with high precision.

High-end high-quality drag chain No break, no deformation.

Equipped with special fine tuning handwheel of LNC.

Solvable processing

1. drilling: Adopts different diameter drills to drill different sizes hole on various boards.
2. grooving: With suitable tools to do grooving or slotting
3. cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.
4. milling: Adopts different shapes CNC milling tools to achieve beautiful designs.
5. hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
6. carving/engraving: 2D carving design on wooden, composite, or other soft raw materials.

Sample processing
