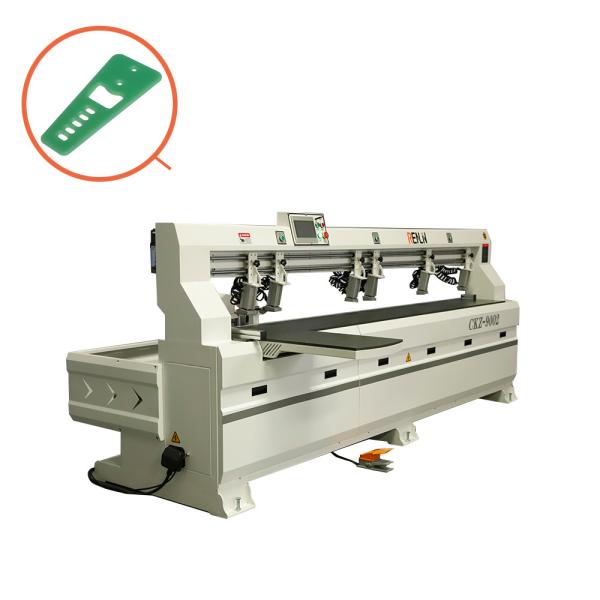

CNC Wood Side Hole Drilling Machine CE ISO9001 Certified
Machine Features:
1. Dual servo system, Y axis servo drive laser sensor scanning
hole, Z axis servo drive tool drilling and grooving.
The professional side hole drilling control system has high
precision of repeated drilling.
2. It is not affected by the color of the plate, and the plate of
15mm to 25mm does not need to adjust the laser.
3. Fast running speed, air speed of 50 m/min, scanning speed of 40
m/min, drilling speed of 40 m/min.
4. Scanning mode, which can connect with many kinds of wardrobe and
cabinet software on the market. After setting the parameters, do
not need to sweep the code gun sweep the code gun. Reduce workload
and improve processing efficiency.
Product Paramenters
No. | Configuration | specification |
1 | RENLIN AC Servo Drive | AC220V750W*2 sets |
2 | BANNER Laser Sensor | DC24V |
3 | RENLIN professional three-axis side slot machine control system | CKZ-9002 |
4 | KUNLUNTONGTAI 7-inch touch screen | DC24V |
5 | RENLIN High-Performance Inverter | XD3001.5G1380V3.5KW |
6 | High-speed spindle 2 sets | 380V 3.5KW |
7 | High precision reducer | 90-80Nm |
8 | Square linear guide,slider | HGH25 |
9 | High-strength heavy-duty body | CKZ3000 |
10 | Specific cylinder Baroclinic | YLQG-5080D3 |
11 | Automatic lubrication oiling device | 220V-1.2L |
Product Details

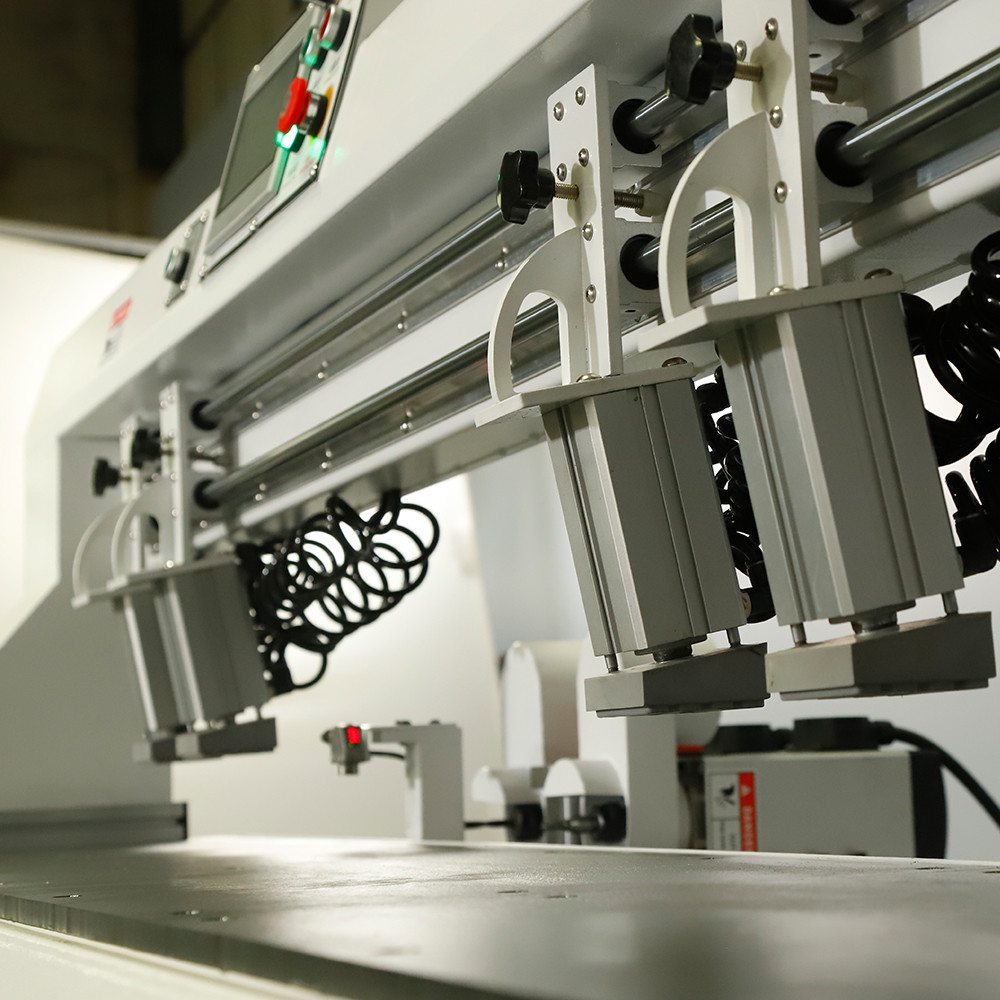

Quickly and accurately,can drill multi kinds of hole and there is
no limit to the board width.
Drive motor adopts servo motor equipped with reducer easily ensure
machine run fast and smooth.
Touch screen control systerm.

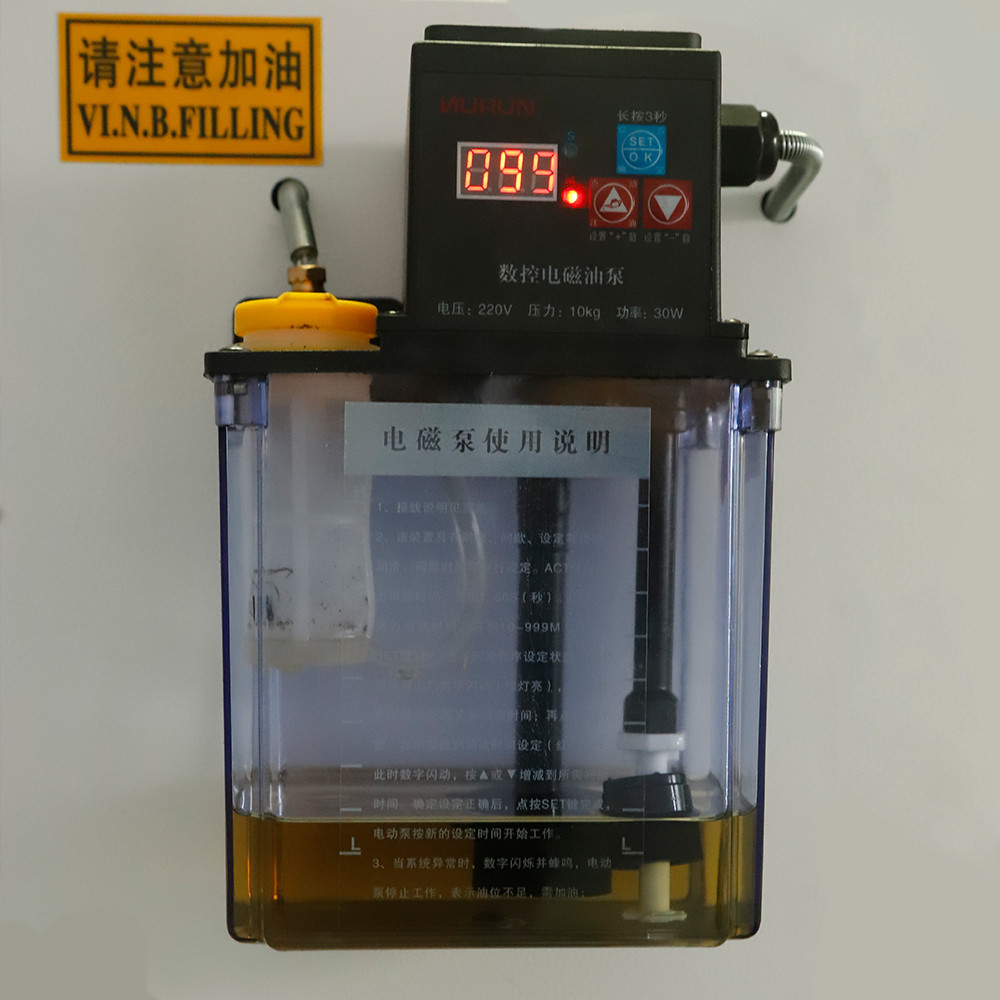

Perfect automatic oil lubrication systerm,prolong the service life
of the machine
Sample & Application:
Panel furniture industry
wood furniture,solid wood doors,decorative materials,cabinets
doors, computer tables,mahjong table,office furniture,wooden sound
box, kitchenware,etc , all kinds of board type furniture, wooden
doors, cabinets.
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
Our Service:
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp
or telephone.
2.We will provide free training, free maintenance, free technical
upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
FAQ:
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it
is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you trading company or manufacturer?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country
port directly, please tell us your port name. There will be best
shipping freight and machine price send to you.
