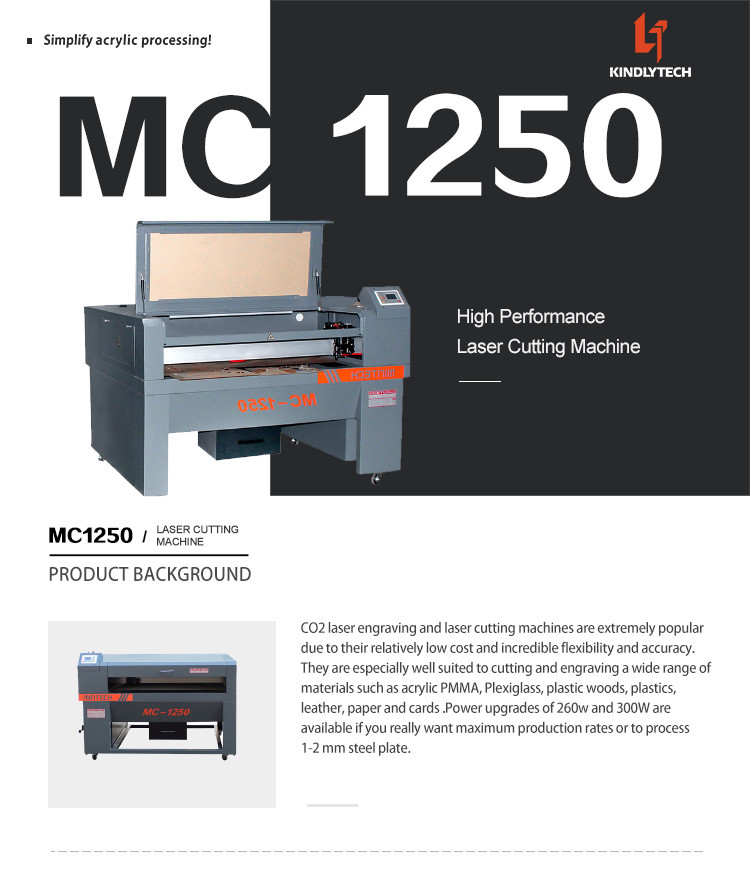

China Acrylic Laser Cutting Machine CNC CO2 Laser Cutting Machine
Price (MC-1250)
Machine features:
The whole steel bed, precision screw drive, imported servo drive,
unique optical design.
Machine function:
Cutting and engraving.
Applicable materials:
The acrylic, wood, leather, cloth and other non-metallic materials;
such as cutting head with a metal cutting plate is less than 2mm.
Applicable industry:
Advertising production, exhibition, carpentry furniture, clothing,
shoes, craft gifts and so on.
The machine advantages:
stable structure, high cutting precision, good quality, high speed,
light stability and high cost performance.

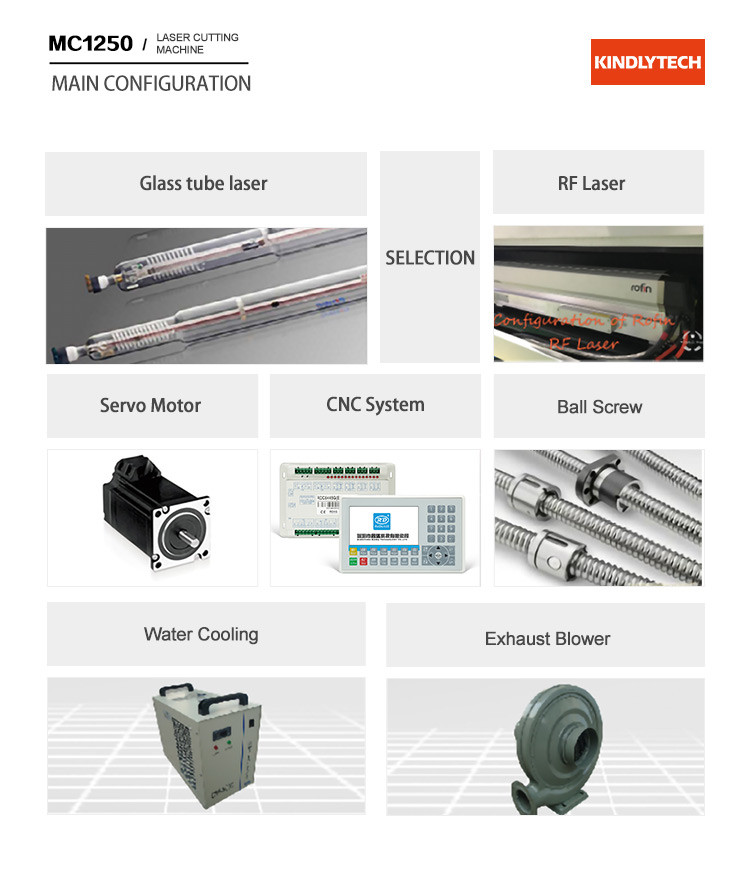

| Item | Specification | Remark |
| Working area | X:1250,Y:900mm | Machine annealing and precision machining |
| Machine size | 1600×1750×1200mm | |
| Repeatability | ±0.05 | |
| Rapid Traverse | 20m/min | |
| Max acrylic cutting thickness | 30mm | perfect cut |
| Maximum plate thickness | 2mm | Steel plate cutting if optional |
| Laser tube | DC Glass tube 130W CO² | Standard configuration |
| Cutting head | Quick install, precision adjust | MINTECH |
| Machine driven system | X/Y axis ball screw | Import from taiwan |
| X/Y/Z TBI linear guide | Import from Taiwan |
| Special cooling system | Precision:±0.5ºC | Guangzhou S&A |
| Control system | Off line control | |
| Servo motor | MITSUBISHI | Import from Japan |
| Touch screen system | High definition | MCGS |
| Following system | Auto follow, precision:±0.05mm | Cut steel plate only |
| Red light | Guide light | |
| Led light | Machine light | |
| Smoke extractor exhaust fan | | Standard configuration |
| Exhaust control | Touch screen control | |
| Air supply | 0.6Mpa | Dry treatment, no water, no oi |
| Net weight | 400Kg | |
Optional:
1,100-260W,DC direct current laser (glass).
2, import RF laser.
3, metal and nonmetal mixed cutting (2mm steel plate).
4, automatic edge alignment cutting.
5, air purifier.
Guarantee & After-sale service:
1. One year warranty under normal use and we supply lifelong
maintenance.
2. 24 hours technical support by Phone, Email, Skype, Msn, or
romote.
3. Free training to make sure you master the operation of machine .
OEM Service Available:
1. Usually, we will manufacturer the machine as our regular design.
2. working size could be custmer-oriented designing.
3. Special configuration and machine color could be
customer-oriented designing.
FAQ:
Q:I knew nothing about this machine, what kindof machine i should
choose?
A:Just tell us what you want to do byusing CNC machine, then let us
give you perfectsolutions and suggestions.
Q:What technical services can you provide?
A:We will send video and English manual with the machine. And
24-hour professional technicians online training and problem
solving. It provide detailed installation courses.
Q:If some problems happen to this machineduring warranty period,
what should I do?
A:We will supply free parts during machine warranty periodif
machine have some problems. While we also supplyfree life long
after-sales service. So any doubts, just let usknow, we will give
you solutions.
